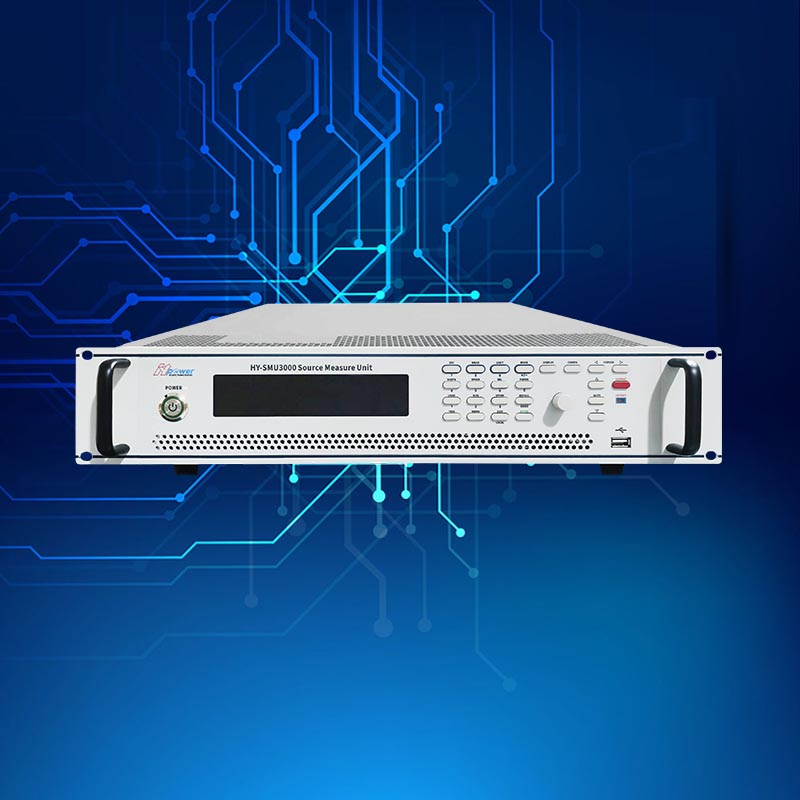

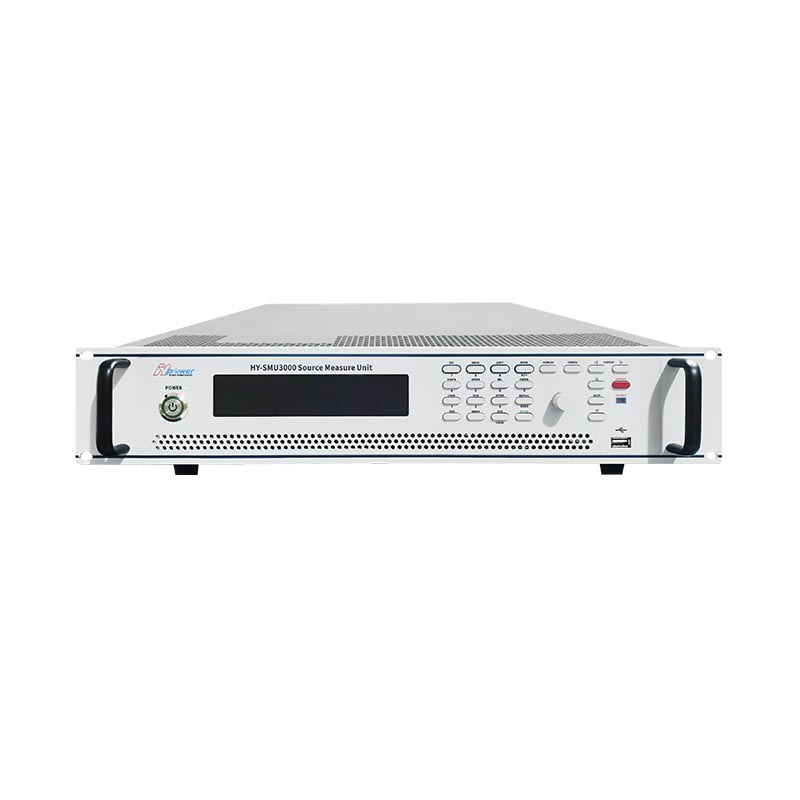

HY-SMUSU 3000

Product Features

■ It offers highly flexible, four-quadrant voltage andcurrent source/load coupled with precision voltage andcurrent meters

■ Source or sink up to 180W of DC or pulsed power (±3000V/20mA±1500V/120mA)

■ 1fA low current resolution

■ Dual 22-bit precision ADCs and dual 18bit 1μs per point digitizers for high accuracy and high speed transient capture

■ Easy compatibility with other digital source tables for system integration

■ Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator, electronic 18-bit load, and trigger controller-all in one instrument

Product Application

■ Semiconductor characterization instrument

■ V or I waveform generator

■ V or I pulse generator

■ Precision power supply with V and I readback

■ True current source

■ Digital multimeter (DCV, DCl, ohms, and power with 6½-digit resolution)

■ Precision electronic load

Application Field

■ Power semiconductor device characterization and testing

■ Characterization of GaN, SiC, and other compound materials and devices

■ Breakdown and leakage testing to 3kV

■ Characterization of sub-millisecond transients
